ANNKE PoE Network Video Recorder With H265 Video Security NVR
ANNKE PoE Network Video Recorder With H265 Video Security NVR
Couldn't load pickup availability

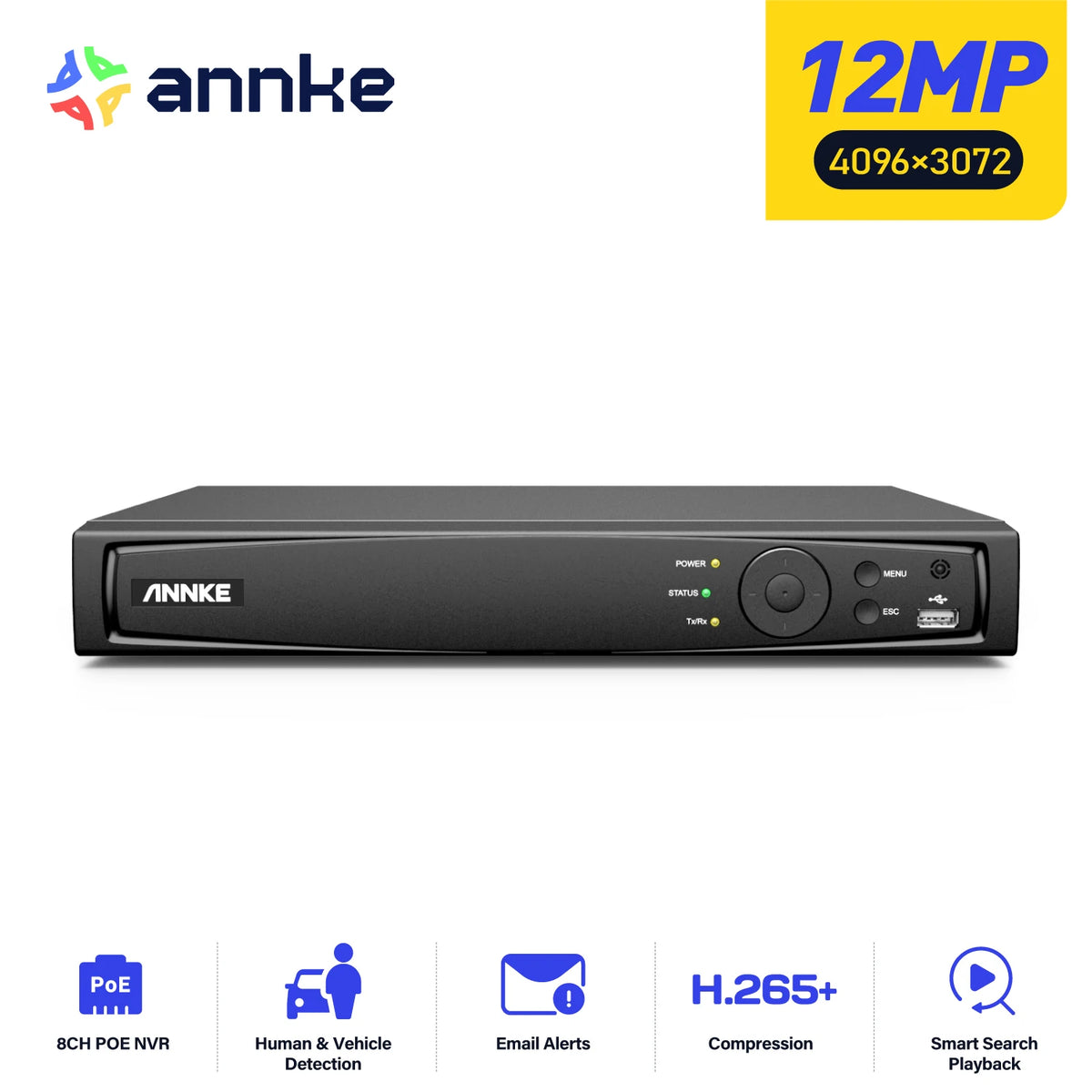

Bring up to eight PoE IP cameras together in one recorder, with high-resolution viewing, recording, and playback for your security setup.
- 12 MP detail: Record and play back at up to 12 MP and 30 fps, with frame rate dependent on your IP cameras.
- Efficient video compression: H.265+ and H.265 support help manage video storage, with H.264 and H.264+ also supported.
- View your way: Monitor remotely with Annke Vision on iPhone, iPad, or Android, or connect a display through HDMI up to 4K or VGA up to 1080p.

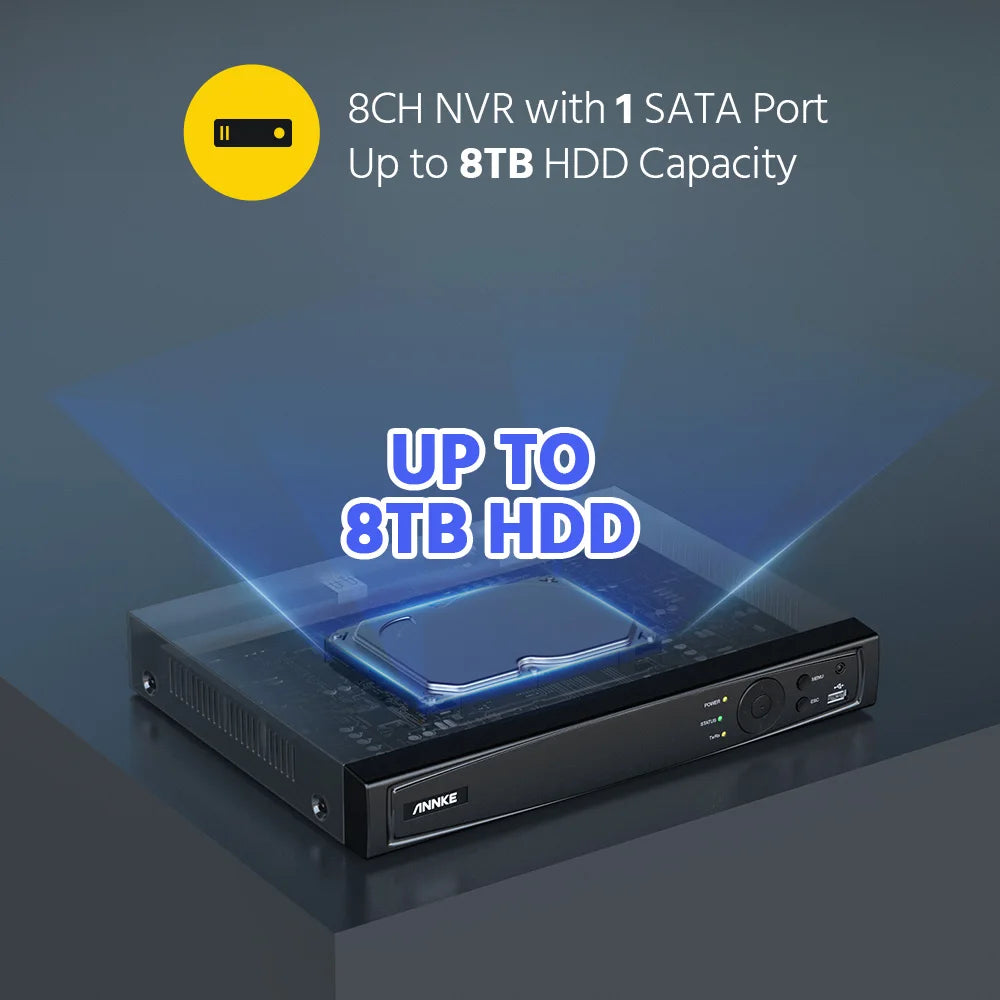

- Detection and storage: Use four-channel human and vehicle detection without camera support at resolutions up to 4 MP; the single SATA bay supports a hard drive up to 8 TB.
NVR | ||
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080) |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|
